Technique T2220-M1 Leverless Tyre Changer with Memory
The Ultimate Tyre Changing Experience

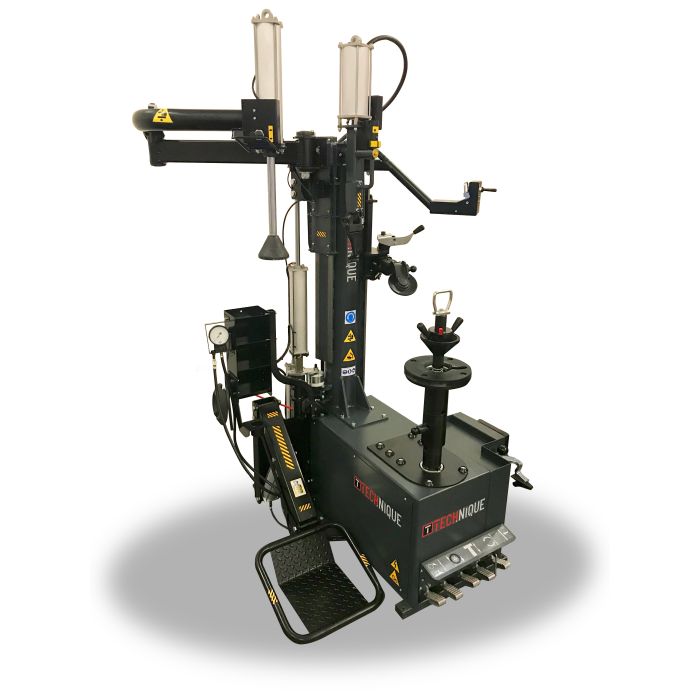

Technique T2220-M1 Leverless Tyre Changer with Memory
When your workshop demands maximum efficiency, premium wheel protection, and cutting-edge technology, the Technique T2220-M1 delivers performance at an entirely new level.
Go Leverless – Work Smarter, Not Harder
This fully leverless tyre changer eliminates traditional tools—reducing operator effort while virtually removing the risk of rim damage.
Perfect for handling low-profile, run-flat, and performance tyres with complete confidence.
Intelligent Memory Technology
Work faster and more accurately with advanced memory positioning:
- Automatically returns the demount head and bead breaker to the exact same position
- Saves time on repeat jobs
- Improves consistency and efficiency
All at the push of a pedal.
Precision Power for Modern Tyres
Take on the toughest jobs with ease:
- Up to 1200Nm torque for demanding applications
- Variable speed control for delicate, low-profile tyres
- Dual bead breaking system (roller + side) for ultimate versatility
Power when you need it—precision when it matters.
Built to Protect Premium Wheels
Every detail is engineered to protect high-value rims:
- Adjustable centre post clamping to safely handle reverse rims
- Leverless design eliminates metal contact with alloys
- Controlled operation ensures safe handling every time
Designed for Efficiency & Space Saving
- Vertical turret design removes the need for tilt-back—saving workspace
- Integrated pneumatic wheel lift reduces operator strain
- Side assist arm provides extra control on difficult tyres
Ideal for busy workshops where space and speed matter.
The Competitive Edge Your Workshop Needs
The T2220-M1 isn’t just a tyre changer—it’s a productivity and profitability upgrade:
- Faster job completion with memory-assisted positioning
- Reduced risk of costly wheel damage
- Capability to handle high-end and specialist tyres
- Improved technician efficiency and comfort
Upgrade to Premium Performance
If you want to deliver faster service, flawless results, and superior wheel protection, the Technique T2220-M1 is the machine that sets your workshop apart.
Invest in smarter technology—and take your tyre changing capability to the next level.
- Memory positioning of demount head and bead breaker.
- Adjustable height center post clamping.
- Space saving vertical turret as no tilt back required.
- Variable speed motor for the tight tyres.
- Conventional side bead breaker.
- Vertical roller bead breaker.
- Integral pneumatic wheel lift.
- Side assist arm.
|
Rotation Speed (rev/min) |
7,3 6,5/13 (V) 0-16 (D) |
|
Max Torque |
1200 Nm |
|
Recommended Air Supply |
8 / 10 bar |
|
Max Wheel Diameter |
45”/1143 mm |
|
Max Wheel Width |
381 mm (15”) |
|
Max Side Shovel Bead Loosener Opening |
432 mm (17”) |
|
Handles Wheels From |
10”- 26” |
|
Rotation Motor |
1,5 Kw inv.+ 0,75kw motor |
|
Bead Loosener Power (roller) |
1200 kg (2645 lbs) |
|
Bead Loosener Power (side shovel) |
3600 kg (7900 lbs) |
|
Noise Level |
<80db |
