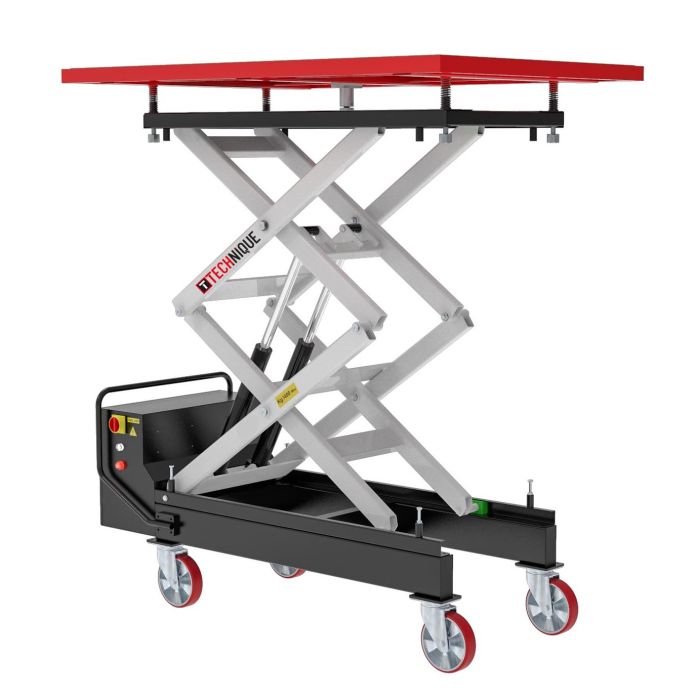

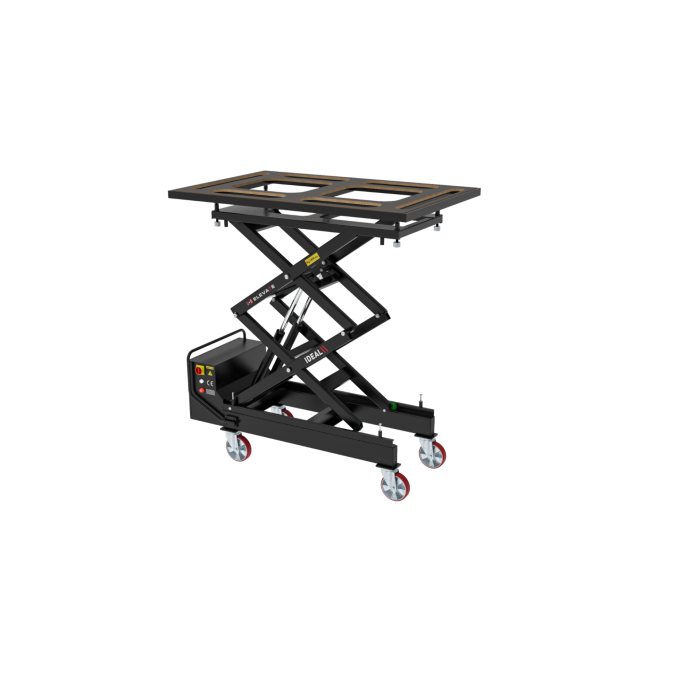

Technique T3314 Electric Vehicle Battery/Engine Lifting Table - 1400kg capacity
£3,895.00
Finance Available
For a finance quotation from Kennet Equipment Leasing click or scan this QR code
Specialist lifting table for removal and re-fitting of electric vehicle battery packs and conventional engines.
- Equipped with an adjustable lifting platform with capacity for disassembling battery packs, engines and transmissions
- Omnidirectional high load wheel with integrated brake
- Ergonomic Controls,
- Self-leveling platform with shaped wood worktop (to avoid conductivity when working with a battery pack)
- Double hydraulic cylinder system
- The wooden top has specially designed shapes to facilitate the operator's access to fixings during disassembly operations of compnents such as batteries, transmissions, and engines under the vehicle body
- Alignment system equipped with central stabilisation bar for perfect centering and positioning of the trolley under the vehicle chassis
- Lifting system equipped with double cylinder hydraulics and high efficiency polyethilene sliding pads
- Anti-crush safety stop system to hand injury during closing phase
- Sturdy pivoting wheels with brake
- Ergonomic dead-man control system in low voltage 12v equipped with cabled remote controls with a magnetic mount
TECHNICAL DATA:
| Maximum Capacity | 1400 kg |
| Lifting/lowering time | 20sec |
| Lowered height | 800 mm |
| Fully raised height | 2000 mm |
| Weight | 200kg |
| Power | 1.5kw, 230V, single phase |
*Price includes delivery to site in UK mainland. Some user assembly required.
